Kubernetes In Action

Written by Marko Lukša, Kubernetes In Action is a fantastic book covering all operational aspects of Kubernetes. I find it very hard to think of a better book on the subject. This is the first edition of the book, published in December 2017, and although dated around the edges and details, Marko’s in-depth dive into the different components that make up Kubernetes and how they work is timeless. I highly recommend this book to anyone looking for any serious learning of Kubernetes. This book’s shelf life is pretty long despite Kubernetes’ active development - I would think it can only be supplanted by the second edition coming out early next year¹.

Kubernetes In Action provided me with solid a theoretical and practical foundation on Kubernetes, enabling me to earn the Certified Kubernetes Application Developer badge.

Check out some other books I’ve read on the bookshelf.

Summary

Kubernetes In Action’s roadmap takes us on a journey with the end goal of developing Kubia - a contrived sample application - while exploring the core concepts of Kubernetes in depth. Beyond the basics, some of the things this book explains are Kubernetes’ architecture, how pods communicate with each other, how to secure your K8S cluster, pod affinity and anti-affinity, tolerations, the API service, and how to extend Kubernetes with custom resources. The reader is kept engaged with practical exercises throughout by applying configurations and testing them. These configurations and extra resources can be found in the book’s GitHub repository.

Tools and runtimes

Kubernetes comes in several flavors. “Vanilla” Kubernetes can be installed using kubeadm. Other flavors, such as minikube, make it very easy to install a local Kubernetes cluster for development purposes.

The primary way to interact with a Kubernetes cluster is with kubectl²³. You can install it directly using the official instructions, but other installation means are available, such as with gcloud components install kubectl if GKE is your provider.

Normally kubectl is automatically configured by your Kubernetes provisioner with the necessary configuration to interact with the cluster. For example, here is what my configuration looks like after running minikube start⁴:

Hands On

Run kubectl config view to view your local configuration:

Example

$ kubectl config view
apiVersion: v1
clusters:
- cluster:
    certificate-authority: /home/llorllale/.minikube/ca.crt
    extensions:
    - extension:
        last-update: Wed, 24 Aug 2022 21:33:37 EDT
        provider: minikube.sigs.k8s.io
        version: v1.25.2
      name: cluster_info
    server: https://192.168.49.2:8443
  name: minikube
contexts:
- context:
    cluster: minikube
    extensions:
    - extension:
        last-update: Wed, 24 Aug 2022 21:33:37 EDT
        provider: minikube.sigs.k8s.io
        version: v1.25.2
      name: context_info
    namespace: default
    user: minikube
  name: minikube
current-context: minikube
kind: Config
preferences: {}
users:
- name: minikube
  user:
    client-certificate: /home/llorllale/.minikube/profiles/minikube/client.crt
    client-key: /home/llorllale/.minikube/profiles/minikube/client.key

kubectl supports drop-in plugins since v1.12. The community has provided many plugins, some of which I find immensely useful. I’ll write about these in a future article.

System components

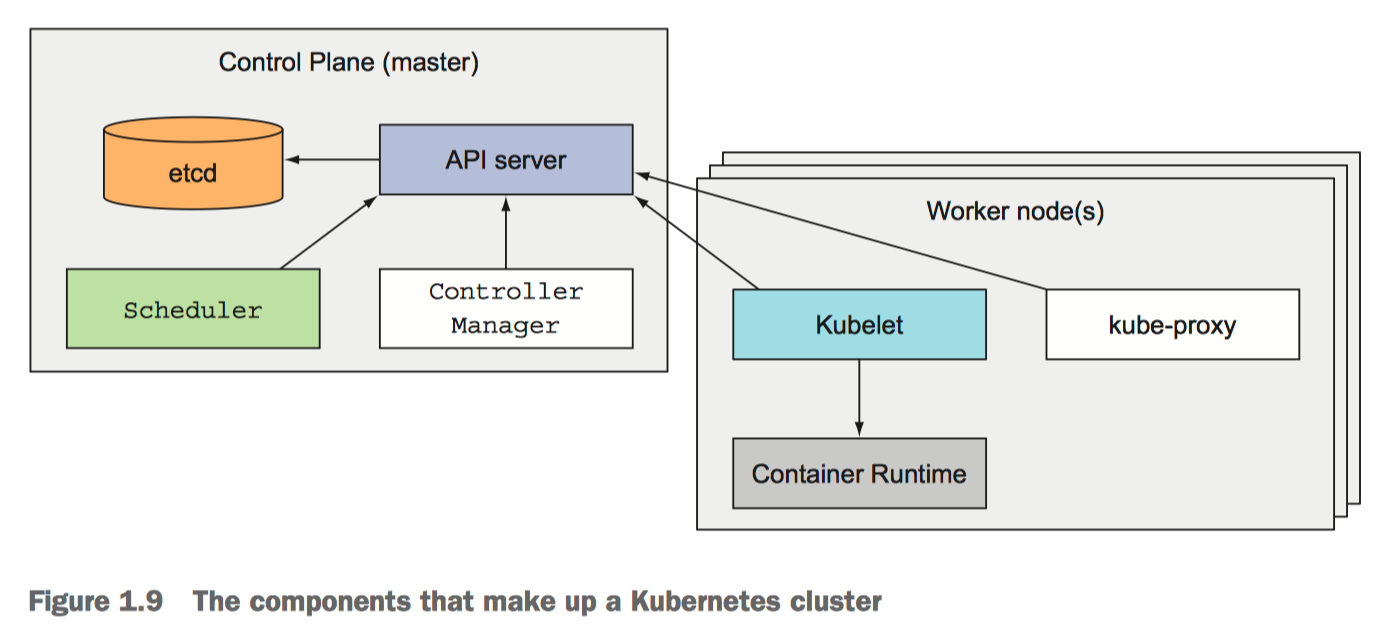

From Chapter 1, section 1.3.3 Understanding the architecture of a Kubernetes cluster

There are two sets of components:

Control Plane components

These components are in charge of monitoring and responding to events in the cluster.

• The API server (kube-apiserver) exposes a REST API and is what kubectl interacts with then you execute its commands. The other components also discover the state of the cluster via the API server.
• The Controller Manager (kube-controller-manager) is the control loop that reconciles the cluster’s actual state with the desired state.
• The Scheduler (kube-scheduler) assigns Pods unto nodes for them to run. There are many reasons why a pod may not be scheduled unto nodes and some of those reasons can have side effects, such as an automatic scale up of the cluster’s node pool. You will probably spend a lot of time figuring out the scheduler and looking at Pod event logs at some point or another.
• etcd is the distributed key-value store used by most Kubernetes clusters.

Node components

These are components that run in each node and are used to realize the configurations sent out by the components in the control plane.

• kubelet runs containers specified in Pod specs and monitors their health.
• kube-proxy is a network proxy that implements part of the Kubernetes Service concept. It takes the network rules configured by the control plane components and applies them locally to the node’s IP routing rules. It has different modes of operation; there is a nice explanation here about its modes.
• Container Runtime are what run the containers (eg. docker, containerd).

Kubernetes Resources

Kubernetes is a massive beast. Here are (almost) all the resources I am aware of as a developer⁵:

Arrows indicate references to the target component.

Kubernetes In Action covers all of these objects and more. I am only going to gloss over a handful of the most important ones.

Namespace

Don’t let its distance and disconnection from other nodes in the diagram above mislead you: namespace is one of the most fundamental concepts in Kubernetes, as it lets developers and administrators separate different resources into logical groups. For example, environments such as dev, staging, and prod, can reside in different namespaces within the same K8S cluster. Another popular use of namespaces is to group resources belonging to applications with cross-cutting concerns.

Adding a connection to Namespace from every resource that references it would make the diagram unwieldy!

Beyond grouping user resources into logical units, it is important to understand that some built-in resources are scoped to the namespace they are declared in and others operate across the whole cluster. For those that are namespaced, the default namespace is the default if none is specified.

Hands On

Declaratively set namespace with metadata.namespace:

Example

apiVersion: v1
kind: Pod
metadata:
  name: myapp
  namespace: mynamespace
spec:
  containers:
    - name: myapp
      image: nginx

Set namespace with kubectl:

Example

$ kubectl run -n mynamespace myapp --image nginx --dry-run=client -o yaml
apiVersion: v1
kind: Pod
metadata:
  creationTimestamp: null
  labels:
    run: myapp
  name: myapp
  namespace: mynamespace
spec:
  containers:
  - image: nginx
    name: myapp
    resources: {}
  dnsPolicy: ClusterFirst
  restartPolicy: Always
status: {}

View all namespaces for a given cluster/context:

Example

$ kubectl get ns
NAME              STATUS   AGE
default           Active   63d
istio-system      Active   59d
kube-node-lease   Active   63d
kube-public       Active   63d
kube-system       Active   63d

List all resources and see which are namespaced and which aren’t:

Example

$ kubectl api-resources
NAME                              SHORTNAMES   APIVERSION                             NAMESPACED   KIND
bindings                                       v1                                     true         Binding
componentstatuses                 cs           v1                                     false        ComponentStatus
configmaps                        cm           v1                                     true         ConfigMap
endpoints                         ep           v1                                     true         Endpoints
events                            ev           v1                                     true         Event
limitranges                       limits       v1                                     true         LimitRange
namespaces                        ns           v1                                     false        Namespace
nodes                             no           v1                                     false        Node
persistentvolumeclaims            pvc          v1                                     true         PersistentVolumeClaim
persistentvolumes                 pv           v1                                     false        PersistentVolume
...

Pod

Pods are the smallest deployable units of computing that you can create and manage in Kubernetes. Pods are composed of one or more containers with shared storage and network resources.

– Kubernetes/Pods

Containers are instances of pre-packaged images (or “snapshots”) of executable software that can be run on any platform, including Kubernetes. Pods are what run your application.

The Pod resource is centered in the diagram above because it is the workhorse of a Kubernetes application deployment. We’ll explore most of those other objects in later sections.

All roads lead to Pods.

– me

Hands On

Use kubectl run to create and run Pods imperatively:

Example

# This pod defines a single container named _nginx_ with container image also _nginx_.
# The pod's name also happens to be _nginx_.
$ kubectl run nginx --image=nginx --dry-run=client -o yaml
apiVersion: v1
kind: Pod
metadata:
  labels:
    run: nginx
  name: nginx
spec:
  containers:
  - image: nginx
    name: nginx
  dnsPolicy: ClusterFirst
  restartPolicy: Always

Pods are composed of one or more containers; these containers can be divided into three types:

• containers: these are your regular containers that run your application workload.
• initContainers: similar to regular containers except that kubelet runs them first before regular containers. All initContainers must run successfully for regular containers to be started. Their use case is obvious: use them to execute utilities or setup scripts not present in the regular container. Sadly, kubectl run does not support specifying initContainers, so we have to add them to the Pod’s spec manually.
• ephemeralContainers: these containers are added to the pod at runtime when debugging a Pod. They are not part of the Pod’s original manifest.

Hands On

kubectl run cannot add initContainers to a Pod. You must add them yourself:

Example pod with initContainers

apiVersion: v1
kind: Pod
metadata:
  name: my-pod
  labels:
    app: nginx
spec:
  initContainers:
    - name: init
      image: busybox
      command: ["echo", "<DOCTYPE !html><body><h1>Hello, World!</h1</body>", ">", "/usr/share/nginx/html/index.html"]
      volumeMounts:
        - name: content
          mountPath: /usr/share/nginx/html
  containers:
    - name: app
      image: nginx
      ports:
        - containerPort: 80
      volumeMounts:
        - name: content
          mountPath: /usr/share/nginx/html
  volumes:
    - name: content
      emptyDir: {}

PersistentVolumeClaims and PersistentVolumes

A PersistentVolume provisions storage for use by Pods. They can be created either statically or dynamically. A PersistentVolumeClaim is a request for a PersistentVolume. A PVC specifies the amount of storage requested and, if a suitable PV is found then the PVC is bound to the PV, otherwise a new PV may be provisioned, depending on the PVC’s StorageClass. A Pod (or a PodTemplate) can reference a PVC and mount it in one or more of its containers.

We’ll cover PVs and PVCs in depth in a later article.

Deployment

Deployments manage the state of a set of one or more pods. This is important for a number of use cases, such as scaling the number of pods or updating the application workload’s version.

You describe a desired state in a Deployment, and the Deployment Controller changes the actual state to the desired state at a controlled rate.

– Kubernetes/Deployment

Under the hood a deployment uses a ReplicaSet to manage a set of pods for a given state. The latter deprecates and replaced the old ReplicationController.

A ReplicaSet’s purpose is to maintain a stable set of replica Pods running at any given time. As such, it is often used to guarantee the availability of a specified number of identical Pods.

– Kubernetes/ReplicaSet

Hands On

Create a deployment with kubectl create deploy:

Example

$ kubectl create deploy mydeploy --image=nginx --replicas=2 --dry-run=client -o yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: mydeploy
    name: mydeploy
spec:
  replicas: 2
  selector:
    matchLabels:
      app: mydeploy
template:
  metadata:
  labels:
    app: mydeploy
  spec:
    containers:
    - image: nginx
      name: nginx

StatefulSet

StatefulSets are very similar to Deployments with a big distinction: each pod managed by a StatefulSet has a unique persistent identity which you can match to specific storage volumes (these are described further down). This makes the StatefulSet particularly useful for distributed applications such as CouchDB, Redis, Hyperledger Fabric, and many others.

Note: a Headless Service is required for StatefulSets.

Note: kubectl does not have a command to create statefulsets.

Hands On

Here’s a simple example from the Kubernetes docs:

Example

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: web
spec:
  selector:
    matchLabels:
      app: nginx # has to match .spec.template.metadata.labels
  serviceName: "nginx"
  replicas: 3 # by default is 1
  minReadySeconds: 10 # by default is 0
  template:
    metadata:
      labels:
        app: nginx # has to match .spec.selector.matchLabels
    spec:
      terminationGracePeriodSeconds: 10
      containers:
      - name: nginx
        image: registry.k8s.io/nginx-slim:0.8
        ports:
        - containerPort: 80
          name: web
        volumeMounts:
        - name: www
          mountPath: /usr/share/nginx/html
  volumeClaimTemplates:
  - metadata:
      name: www
    spec:
      accessModes: [ "ReadWriteOnce" ]
      storageClassName: "my-storage-class"
      resources:
        requests:
          storage: 1Gi

Deploying the above in my local minikube cluster using kubectl apply -f <filename> we can see:

Example

$ kubectl get statefulset web
NAME   READY   AGE
web    3/3     80s

$ kubectl get po
NAME    READY   STATUS    RESTARTS   AGE
web-0   1/1     Running   0          2m53s
web-1   1/1     Running   0          2m33s
web-2   1/1     Running   0          2m13s

If you describe the pods you’ll realize each has an associated PersistentVolumeClaim:

Example

$ kubectl describe po web-2
Name:             web-2
Namespace:        default
Priority:         0
Service Account:  default
Node:             minikube/192.168.49.2
...
Volumes:
  www:
    Type:       PersistentVolumeClaim (a reference to a PersistentVolumeClaim in the same namespace)
    ClaimName:  www-web-2
    ReadOnly:   false
...

And when describing that PVC you’ll see it’s associated with a unique PersistentVolume:

Example

$ kubectl describe pvc www-web-2
Name:          www-web-2
Namespace:     default
...
Volume:        pvc-33f94fdb-9e17-4ee6-a2e7-0b10d88699e3
...
Used By:       web-2
...

Scaling the statefulset down does not delete the PVs:

Example

$ kubectl scale statefulset web --replicas 1
statefulset.apps/web scaled
$ kubectl get po
NAME    READY   STATUS    RESTARTS   AGE
web-0   1/1     Running   0          91m
$ kubectl get pvc
NAME        STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
www-web-0   Bound    pvc-bb53c1eb-de59-477f-b82e-606cdfe234ba   1Mi        RWO            standard       91m
www-web-1   Bound    pvc-e8ea7850-58da-460f-9fb2-315627708cc3   1Mi        RWO            standard       91m
www-web-2   Bound    pvc-33f94fdb-9e17-4ee6-a2e7-0b10d88699e3   1Mi        RWO            standard       91m
$ kubectl get pv
NAME                                       CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM               STORAGECLASS   REASON   AGE
pvc-33f94fdb-9e17-4ee6-a2e7-0b10d88699e3   1Gi        RWO            Delete           Bound    default/www-web-2   standard                91m
pvc-bb53c1eb-de59-477f-b82e-606cdfe234ba   1Gi        RWO            Delete           Bound    default/www-web-0   standard                92m
pvc-e8ea7850-58da-460f-9fb2-315627708cc3   1Gi        RWO            Delete           Bound    default/www-web-1   standard                91m

Scaling the statefulset back up does not create new PVCs; the existing PVCs are assigned to the pods in order:

Example

$ kubectl scale statefuleset web --replicas 3
statefulset.apps/web scaled
 $ kubectl get po
NAME    READY   STATUS    RESTARTS   AGE
web-0   1/1     Running   0          96m
web-1   1/1     Running   0          47s
web-2   1/1     Running   0          27s
$ kubectl get pvc
NAME        STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
www-web-0   Bound    pvc-bb53c1eb-de59-477f-b82e-606cdfe234ba   1Mi        RWO            standard       97m
www-web-1   Bound    pvc-e8ea7850-58da-460f-9fb2-315627708cc3   1Mi        RWO            standard       97m
www-web-2   Bound    pvc-33f94fdb-9e17-4ee6-a2e7-0b10d88699e3   1Mi        RWO            standard       96m

HorizontalPodAutoscaler

Horizontal scaling means that the response to increased load is to deploy more Pods. This is different from vertical scaling, which for Kubernetes would mean assigning more resources (for example: memory or CPU) to the Pods that are already running for the workload.

– Kubernetes/HorizontalPodAutoscaler Walkthrough

HPAs will update the .spec.replicas of Deployments and StatefulSets using metrics collected from the Metrics Server, as input. The Metrics Server is the default source of container metrics for autoscaling pipelines.

Note: Kubernetes does not provide vertical pod autoscalers out of the box⁶. You can install the autoscaler developed within the Kubernetes project umbrella, or you may use your K8S provider’s offering, such as GKE’s Vertical Pod autoscaling. A vertical pod autoscaler will automatically update the Pod’s resource requests and limits.

Service

Exposing services in Kubernetes both within and without would be more cumbersome if not for Service objects. Pods are not permanent resources; Services fill in the gap by providing a stable DNS name for a set of Pods. The target pods are selected by matching labels.

There are four types of services:

• ClusterIP (default): the service will only be reachable within the cluster.
• NodePort: allocates a port number on every node (.spec.ports[*].nodePort) and forwards incoming traffic to the port exposed by the service (.spec.ports[*].port). NodePort services
• LoadBalancer: exposes the service to traffic originating from outside the cluster. The machinery used to do this depends on the platform.
• ExternalName: these map DNS names from within the cluster to external names. In other words, the cluster’s DNS service will return CNAME records instead of A records for queries targeting the service’s name.

There is a special kind of Service called a Headless Service that does not perform load-balancing and does not provide a single address for the backing Pods. Instead, it serves to list IP addresses of all the Pods it selects. This type of Service are required for StatefulSets.

Hands On

Use kubectl create svc to create services imperatively:

Example

# Create a service of type `ClusterIP`
$ kubectl create svc clusterip mysvc --tcp=8080:7001 --dry-run=client -o yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    app: mysvc
    name: mysvc
spec:
  ports:
  - name: 8080-7001
    port: 8080
    protocol: TCP
    targetPort: 7001
  selector:
    app: mysvc
  type: ClusterIP

The problem with kubectl create svc is that you can’t specify a selector. Services without selectors have their uses, but you are more likely to want to point your service to a set of pods in your cluster. For this use case you can either write the spec manually or use kubectl expose.

Example

# Expose a deployment named `webapp`. Note the `selector` automatically added:
$ kubectl expose deploy webapp --type ClusterIP --name mysvc --port 8080 --dry-run=client -o yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    app: webapp
name: mysvc
spec:
  ports:
  - port: 8080
    protocol: TCP
    targetPort: 8080
  selector:
    app: webapp
  type: ClusterIP

Ingress

Ingress exposes HTTP and HTTPS routes from outside the cluster to services within the cluster. Traffic routing is controlled by rules defined on the Ingress resource.

– Kubernetes/What is Ingress?

An Ingress is an L7 proxy tailored for HTTP(S) services, allowing request routing based on simple rules such as path prefixes⁷. Note that if you want to expose your services outside your cluster with something other than HTTP, you’d have to use Services of type NodePort or LoadBalancer.

Hands On

Use kubectl create ing to create an Ingress imperatively:

Example

# Create an Ingress that directs incoming traffic on `www.example.com` to a backend service `webapp` on port 8080:
$ kubectl create ing myingress --rule="www.example.com/webapp*=webapp:8080" --dry-run=client -o yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: myingress
spec:
  rules:
  - host: www.example.com
    http:
      paths:
      - backend:
          service:
            name: webapp
            port:
              number: 8080
        path: /webapp
        pathType: Prefix

Footnotes

1. It appears you can use code au35luk to get a 35% discount . ↩

2. Fondly pronounced by many as “cube cuddle”. ↩

3. Other ways include a console offered by your cloud provider in cases where Kubernetes is available as a service. ↩

4. We will explore the configuration in depth in a future article - stay tuned. ↩

5. As a developer I am not including objects that I’m not likely to encounter in may day-to-day, such as TokenReview or EndpointSlice. These will typically be objects configured by an administrator role, or perhaps are objects managed by the underlying K8S provider, such as GKE. ↩

6. I’ve never used a VPA. That said, they might help size your nodes adequately, or have you consider making your pods more efficient. ↩

7. For more advanced routing you should probably make use of a service mesh such as Istio (see VirtualService), or you can explore the Gateway API that recently graduated to beta status! ↩
